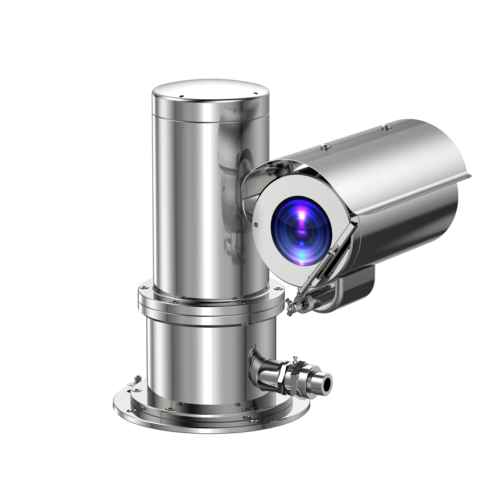

CZ610-A Stainless Steel Explosion Proof PTZ Camera

CZ610-A Stainless Steel Explosion Proof PTZ Camera

CZ610-A Stainless Steel Explosion Proof PTZ Camera
CategoriesExplosion Proof PTZ Cameras(CNEX)
BrandStan Explosion Proof Cameras Manufacturer
ModelCZ610-A
MaterialStainless steel 304 or 316L
CertifiedCNEX,CCC
applyGas Zone 1, Zone 2, Dust Zone 21, 22.
Power SupplyAC100-240V or AC24V
Water Resistant GradeIP68(1.2m/45min)
Download DOC
Update Time2022/10/6
Detail Information

Features

·Stainless Steel Explosion Proof PTZ Camera for hazardous area
·Certified standards CNEX(GB3836-2010)
·Strong tempered glass, fit for hydrofluoric acid area
·Intelligent window defroster design
·Auto temperature adjust kit for aggressive area
·High precision wiper, support user-defined
·Auto temperature adjust kit for aggressive area
·Symmetrical balancing design
·Intelligent long focal speed limit, fit for long distance monitoring
·H.264  main profile / MJPEG
Application scenario
It is Applicable to combustible gases and dust mixture places,such as petroleum, chemical industry, mine, military industry, medicine,oil depots, ships, drilling platforms, gas stations, fireworks production, grain processing and storage, etc.
Certificate
Certificate Mark
Ex d ⅡC T6 Gb/ Ex tD A21 IP68 T80
Certificate No
CNEx18.3765X
CCC Certificate
Support
Effective pixel
2M(1920x1080)
Image Device
1/2.8" Progressive Scan CMOS
Optical zoom
20X ,4.7-94mm  /  30X, 4.5-135mm
Day&Night
IR cut filter
Standard
ONVIF, PSIA, CGI, ISAPI
Communication interface
1 RJ45 10M/100M self-adaptive Ethernet interface, 1 RS-485.
Video output
1Vp-p Composite anolog Output (75Ω)
Minimum illumination
Color: 0.05Lux @ (F1.6, AGC ON)
B/W: 0.01Lux @ (F1.6, AGC ON)
Mechanical
Housing
Stainless steel 304 or 316L
Ingress protection
IP68 (1.2m/ 45min)
Electrical
Voltage
AC100V~AC240V or AC24V or DC24V
Optical Video signal
1-way video output
Optional network signal
RJ45
Optical Audio
1-way input, 1-way output
Optical Alarm
2-way alarm input, 1-way alarm output
Trail cable
2m integrated cable
Ambient
Ambient temperature
-25℃~+60℃
Relative Humidity
≦95% (no condensation)
Communication
Communication type
RS485
Protocol
Pelco-D, Pelco-P
Pan & Tilt
Horizontal
360°
Vertical
-90 to +90°
Network
Network Interface
1pcs of RJ45, support 10M/100M/1000M
MECHANICAL
Material: Stainless steel 304/316L
Ingress protection: IP68
Cable glands: M25x1.5, or M27×1.25
Dimension: 384.5*285*394.7mm
Net Weight: 27.5kg
Mount: wall, pole (or customer tailored)
Wall bracket: ZAZ600B
Detailed product description
