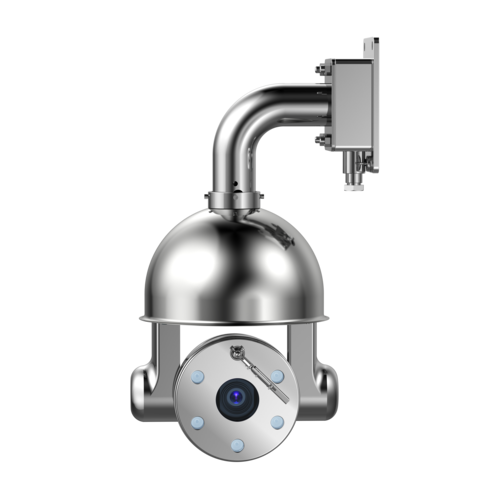

Stainless Steel Explosion Proof Dome Camera with Infrared and Wiper system

Stainless Steel Explosion Proof Dome Camera with Infrared and Wiper system

Stainless Steel Explosion Proof Dome Camera with  Infrared and Wiper system
CategoriesExplosion Proof Dome Cameras(CNEX)
BrandStan Explosion Proof Cameras Manufacturer
ModelZAT680
MaterialStainless steel 304 or 316L
CertifiedCNEx,CCC
applyGas Zone 1, Zone 2, Dust Zone 21, 22.
Power SupplyAC85V~AC265V or AC24V
Water Resistant GradeIP68(1.2m/45min)
Download DOC
Update Time2022/10/6
Detail Information

Features

·Stainless Steel Explosion Proof Dome Camera with Infrared and Wiper system
·Certified standards CNEX(GB3836-2010)
·Strong tempered glass, fit for hydrofluoric acid area
·Auto temperature adjust kit for aggressive area
·Intelligent long focal speed limit, fit for long distance monitoring
·H.265+/H.265/H.264+/H.264 Video Compression
Application scenario
It is Applicable to combustible gases and dust mixture places,such as petroleum, chemical industry, mine, military industry, medicine,oil depots, ships, drilling platforms, gas stations, fireworks production, grain processing and storage, etc.
Certificate
Certificate Mark
ExdⅡC T6 Gb/ Ex tD A21 IP68 T80
Certificate
CNEx15.2504X
CCC Certificate
Support

Effective Pixels

2M(1920x1080)
Image Device
1/2.8" interline-transfer CCD
Optical zoom
 20X / 30X
Day&Night
IR cut filter
Standard
ONVIF, PSIA, CGI, ISAPI
Communication interface
1 RJ45 10M/100M self-adaptive Ethernet interface, 1 RS-485.
Minimum illumination
Color 0.05Lux   B/W: 0.01Lux
Night vision lights
150~200m
Mechanical
Housing
Stainless steel 304 or 316L
Ingress protection
IP68 (1.2m/ 45min)
Electrical
Voltage
AC85VAC265V or AC24V

Optional network signal
RJ45
Optical Video signal
1-way analog video output
Optical Audio
1-way input, 1-way output
Optical Alarm
2-way alarm input, 1-way alarm output
Trail cable
2m integrated cable
Ambient
Ambient temperature
-25℃~+60℃
Relative Humidity
≦95% (no condensation)
Communication
Communication type
RS485
Protocol
Pelco-D, Pelco-P
Pan & Tilt
Horizontal
360°
Vertical
-90° to +90°
Network
Network Interface
1pcs of RJ45, support 10M/100M/1000M
MECHANICAL
Material: Stainless steel 304/316L
Ingress protection: IP68
Cable glands: G3/4 or NPT3/4
Dimension: 319*240*420mm
Net Weight: 22kg
Mount: wall
Wall bracket: ZAZ680B
Detailed product description
