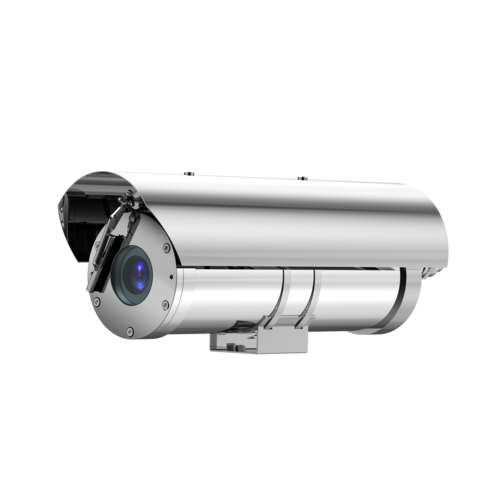

Stainless Steel Explosion Proof Bullet Camera with wiper

Stainless Steel Explosion Proof Bullet Camera with wiper

Stainless Steel Explosion Proof Bullet Camera with wiper
CategoriesExplosion Proof Bullet Cameras(ATEX&IECEx)
BrandStan Explosion Proof Cameras Manufacturer
ModelCZ100-A
MaterialStainless steel 304 or 316L
CertifiedATEX, IECEx
applyGas Zone 1, Zone 2, Dust Zone 21, 22.
Power SupplyAC100-240V or AC24V
Water Resistant GradeIP68(1.2m/45min)
WiperHigh precision wiper
Download DOC
Update Time2022/8/9
Detail Information

Features

·Stainless Steel Explosion Proof Bullet Camera with wiper for hazardous area
·Certified standards IEC/EN60079 (2014)
·Strong tempered glass, fit for hydrofluoric acid area
·Intelligent window defroster design
·Auto temperature adjust kit for aggressive area
·High precision wiper, support user-defined
·Symmetrical balancing design
·High precision wiper , support user-defined
·Surface optional electro-polished or painting
·H.264  main profile / MJPEG
Application scenario
It is Applicable to combustible gases and dust mixture places,such as petroleum, chemical industry, mine, military industry, medicine,oil depots, ships, drilling platforms, gas stations, fireworks production, grain processing and storage, etc.
Certificate
ATEX Certificate Mark
CE2460EX  Ⅱ2G Ex db op is IIC T6 Gb,
                  Ⅱ2D Ex tb op is IIIC T80 ℃ Db
Certificate
Presafe 17 ATEX 11328X, IECEx PRE 18.0030X
Standards
IEC/EN60079

Effective Pixels

2M(1920x1080)
Image Device
1/2.8" Progressive Scan CMOS
Optical zoom
20X ,4.7-94mm  /  30X, 4.5-135mm
Day&Night
IR cut filter
Standard
ONVIF, PSIA, CGI, ISAPI
Communication interface
1 RJ45 10M/100M self-adaptive Ethernet interface, 1 RS-485.
Video output
Dual core 1Vp-p Composite Output (75Ω)
Minimum illumination
Color: 0.05Lux @ (F1.6, AGC ON)
B/W: 0.01Lux @ (F1.6, AGC ON)
Mechanical
Housing
Stainless steel 304 or 316L
Ingress protection
IP68 (1.2m/ 45min)
Wiper
Yes
Electrical
Voltage
AC100V~AC240V or AC24V
Optical Video signal
1-way video output
Optional network signal
RJ45
Optical Audio
1-way input, 1-way output
Optical Alarm
2-way alarm input, 1-way alarm output
Trail cable
2m integrated cable
Ambient
Ambient temperature
-40℃~+60℃
Relative Humidity
≦95% (no condensation)
Communication
Communication type
RS485
Protocol
Pelco-D, Pelco-P
Network
Network Interface
1pcs of RJ45, support 10M/100M/1000M
MECHANICAL
Material: Stainless steel 304/316L
Ingress protection: IP68
Cable glands: M25x1.5, or M27×1.25
Dimension: 524*179*215mm
Net Weight: 14kg
Mount: wall, pole (or customer tailored)
Wall bracket: ZAZ100B,ZAZ100W
