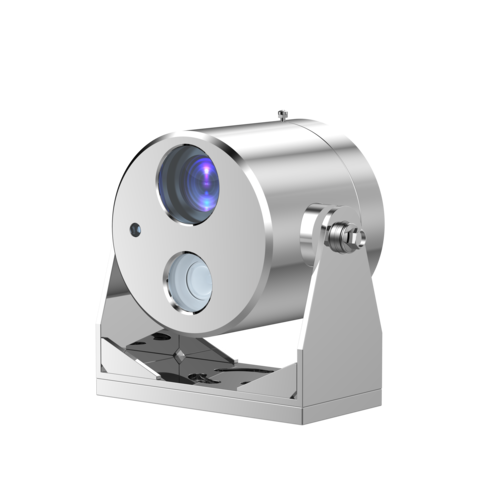

Stainless Steel Explosion Proof Bullet Camera with Infrared

Stainless Steel Explosion Proof Bullet Camera with Infrared

Stainless Steel Explosion Proof Bullet Camera with Infrared
CategoriesExplosion Proof Bullet Cameras(CNEX)
BrandStan Explosion Proof Cameras Manufacturer
ModelZAF109-H
MaterialStainless steel 304 or 316L
CertifiedCNEX, CCC
applyGas Zone 1, Zone 2, Dust Zone 21, 22.
Power SupplyDC12V or POE
Water Resistant GradeIP68(1.2m/45min)
Download DOC
Update Time2022/8/8
Detail Information

Features

·Stainless Steel Explosion Proof Bullet Camera with Infrared for hazardous area
·Certified standards CNEX(GB3836-2010)
·Strong tempered glass, fit for hydrofluoric acid area
·Intelligent window defroster design
·Auto temperature adjust kit for aggressive area
·Surface optional electro-polished or painting
·H.264  main profile / MJPEG
·30m infrared lights
Application scenario
It is Applicable to combustible gases and dust mixture places,such as petroleum, chemical industry, mine, military industry, medicine,oil depots, ships, drilling platforms, gas stations, fireworks production, grain processing and storage, etc.
Certificate
Certificate Mark
ExdⅡC T6 Gb/ Ex tD A21 IP68 T80
Certificate
CNEx16.2526
CCC
Support

Effective Pixels

2M(1920x1080)
Image Device
1/2.8" Progressive Scan CMOS

Lens
4mm,6mm,8mm,12mm
Day&Night
IR cut filter
Standard
ONVIF, PSIA, CGI, ISAPI
Communication interface
1 RJ45 10M/100M self-adaptive Ethernet interface, 1 RS-485.
Video output
Dual core 1Vp-p Composite Output (75Ω)
Minimum illumination
Color: 0.01Lux @ (F2.0, AGC ON)
B/W: 0 Lux with IR
Infrared lights distance
30m
Mechanical
Housing
Stainless steel 304 or 316L
Ingress protection
IP68 (1.2m/ 45min)
Electrical
Voltage
DC12V or POE
Optional network signal
RJ45
Optical Audio
1-way input, 1-way output
Optical Alarm
2-way alarm input, 1-way alarm output
Trail cable
2m integrated cable
Ambient
Ambient temperature
-25℃~+60℃
Relative Humidity
≦95% (no condensation)
Communication
Protocol
Pelco-D, Pelco-P
Network
Network Interface
1pcs of RJ45, support 10M/100M/1000M
MECHANICAL
Material: Stainless steel 304/316L
Ingress protection: IP68
Cable glands: 2pcs G3/4 or NPT3/4
Dimension: Φ150*168mm
Net Weight: 3kg
Mount: wall
Wall bracket: ZAZ109B
Detailed product description
