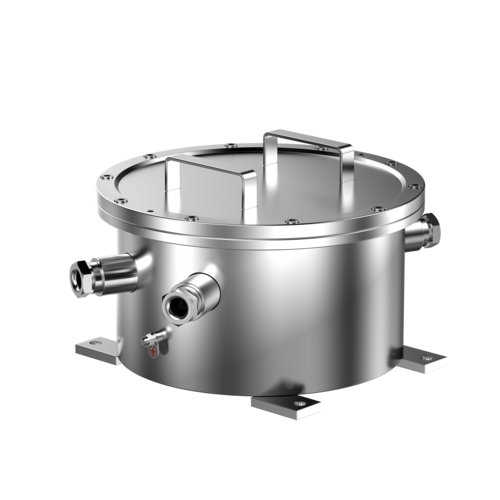

Stainless Steel ATEX Explosion Proof Box

Stainless Steel ATEX Explosion Proof Box
CategoriesExplosion-proof Junction Boxes(ATEX&IECEx)
BrandStan Explosion Proof Cameras Manufacturer
ModelCZ300
MaterialStainless steel 304 or 316L
CertifiedATEX, IECEx
applyGas Zone 1, Zone 2, Dust Zone 21, 22.
Power SupplyAC100-240V
Water Resistant GradeIP68(1.2m/45min)
Download DOC
Update Time2022/10/6
Detail Information

Features

·Stainless Steel ATEX Explosion Proof Box for hazardous area
·Certified standards IEC/EN60079 (2014)
·Auto temperature adjust kit for aggressive area
·Surface optional electro-polished or painting
Application scenario
It is Applicable to combustible gases and dust mixture places,such as petroleum, chemical industry, mine, military industry, medicine,oil depots, ships, drilling platforms, gas stations, fireworks production, grain processing and storage, etc.
Certificate
ATEX Certificate Mark
CE2460 EX  Ⅱ2G Ex db op is IIC T6 Gb,
                  Ⅱ2D Ex tb op is IIIC T80 ℃ Db
Certificate
Presafe 17 ATEX 11328X, IECEx PRE 18.0030X
Standards
IEC/EN60079
Mechanical
Housing
Stainless steel 304 or 316L
Ingress protection
IP68 (1.2m/ 45min)
Optional Power Convert  Module
Voltage Input
AC100V~AC240V
Voltage output
24V3A
Power
75W
Optional Optical Fiber Convert  Module
Type
Signal Mode Fiber, SC
Network transmit mode
10/100M support MDI/MDIX, Distance:20KM
Ambient
Ambient temperature
-40℃~+60℃
Relative Humidity
≦95% (no condensation)
Optional surge protection
Max discharge current
10KA
Max continues working voltage
40VAC
MECHANICAL
Material: Stainless steel 304/316L
Ingress protection: IP68
Cable glands: 4pcs M25*1.5, M27*1.25
Overall size413*397*183mm (L*W*H)
Inner usable size:230*230*120mm (L*W*H)
Net Weight: 13.2kg
Detailed product description
